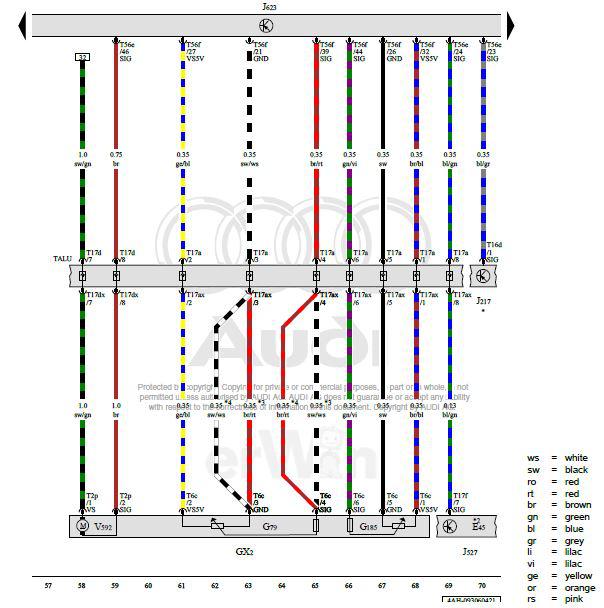

Accelerator Pedal Module, Transmission Control Module, Steering Column Electronics Control Module, Engine/Motor Control Module: Notes

G00601549Courtesy of AUDI OF AMERICA, LLC
