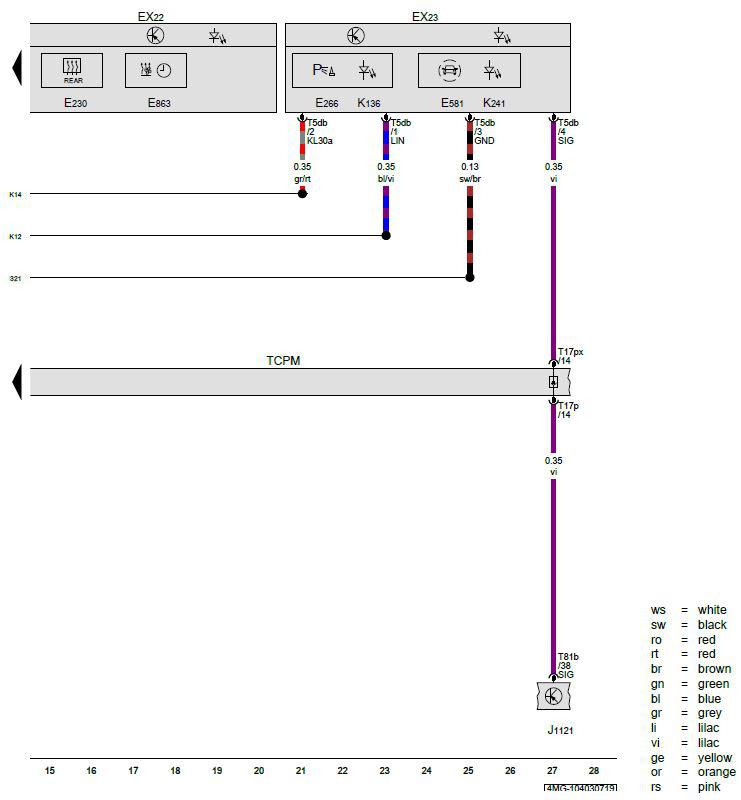

Switch Module in Instrument Panel, Center, Center Console Switch Module 1, Driver Assistance Systems Control Module
EX22 - Switch Module in Instrument Panel, Center
EX23 - Center Console Switch Module 1
E230 - Rear Window Defogger Button
E266 - Parking Aid Button
E581 - Parallel Parking Assistance Button
E863 - Auxiliary Coolant Heater Button
J1121 - Driver Assistance Systems Control Module
K136 - Parking Aid Indicator Lamp
K241 - Parallel Parking Assistance Indicator Lamp
T5db - 5-Pin Connector, Black
T17p - 17-Pin Connector, Black
T17px - 17-Pin Connector, Black
T81b - 81-Pin Connector, Black
TCPM - Coupling Point on Instrument Panel, Center
1321 - Ground Connection 2 (in Center Console Wiring Harness)
K12 - LIN Bus Connection (in Center Console Wiring Harness)
K14 - Connection (30) (in Center Console Wiring Harness)
