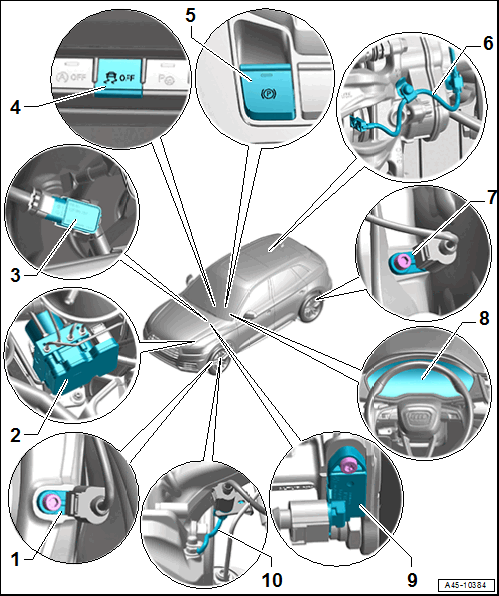

Component Location Overview - Abs/Esp
- Front Speed Sensor --
- Right Front ABS Wheel Speed Sensor -- : G45
- Left Front ABS Wheel Speed Sensor: G47
- Can be checked in "Guided Fault Finding" using the Vehicle Diagnostic Tester.
- Refer to RIGHT AND LEFT FRONT ABS WHEEL SPEED SENSOR -G45- / -G47-, REMOVING AND INSTALLING
- ABS Hydraulic Unit -N55- with ABS Control Module -J104-
- Component location: at the left front of the engine compartment
- Refer to ABS Control Module -J104- WITH ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING
- Refer to CONTROL MODULE, SEPARATING FROM HYDRAULIC UNIT
- Vacuum Sensor : G608
- For vehicles with vacuum brake booster
- Center Switch Module
- ASR/ESP Button -E256-
- Removing and Installing. Refer to CONTROLS .
- Electromechanical Parking Brake Button -E538-
- Component location: in the center console
- Refer to Electromechanical Parking Brake Button -E538- /-AUTO HOLD- Button -E540-, REMOVING AND INSTALLING .
- Right Rear Brake Pad Wear Sensor -G37-
- Only on the right side in the inner brake pad
- Rear Speed Sensor
- Right Rear ABS Wheel Speed Sensor -G44-
- Left Rear ABS Wheel Speed Sensor -G46-
- Can be checked in "Guided Fault Finding" using the Vehicle Diagnostic Tester.
- Refer to RIGHT AND LEFT REAR ABS WHEEL SPEED SENSOR -G44- / -G46-, REMOVING AND INSTALLING
- Instrument Cluster with Instrument Cluster Control Module -J285-
- The indicator lamps cannot be replaced separately
- If faulty, replace the instrument cluster. Refer to INSTRUMENT CLUSTER WITH INSTRUMENT CLUSTER CONTROL MODULE -J285-, REMOVING AND INSTALLING .
- Brake Lamp Switch -F-
- For vehicles with vacuum brake booster
- Component location: on the brake master cylinder
- Refer to BRAKE LAMP SWITCH, REMOVING AND INSTALLING
- Left Front Brake Pad Wear Sensor -G34-
