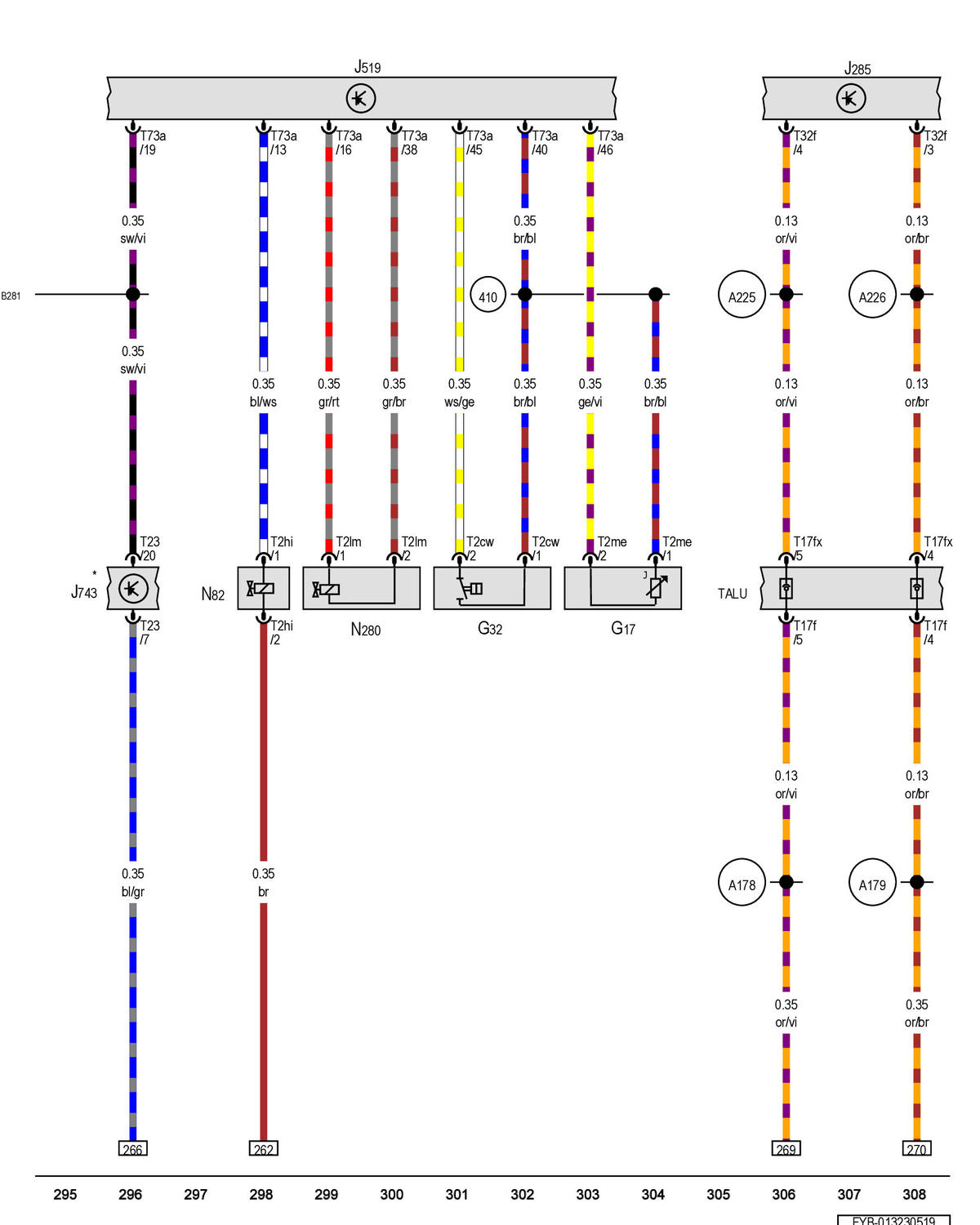

Outside Air Temperature Sensor, Engine Coolant Level Sensor, Instrument Cluster Control Module, Vehicle Electrical System Control Module, Dual-Clutch Transmission MECHATRONIC, Coolant Shut-Off Valve, A/C Compressor Regulator Valve: Notes

GWWFYB-013230519Courtesy of AUDI OF AMERICA, LLC
