Overview - Selector Mechanism

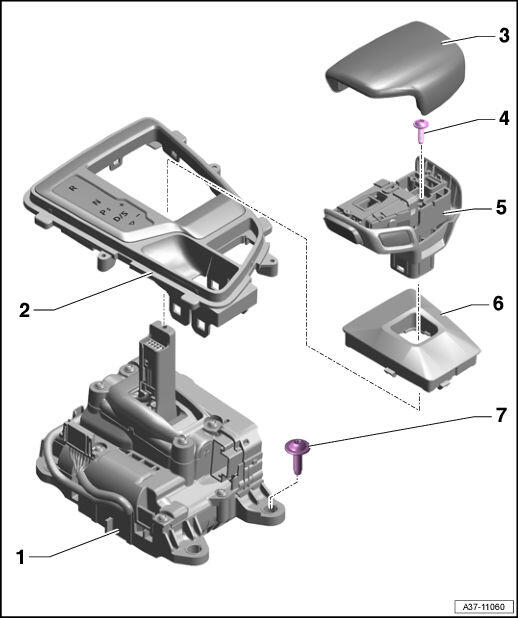

Fig 1: Exploded View Of Selector Mechanism

Courtesy of AUDI OF AMERICA, LLC

Shift Mechanism
- With the following integrated components:
  - Selector Lever -E313-
  - Selector Lever Position Sensor -G727-
  - Transverse Selector Lever Lock Sensor -G868-
  - Selector Lever Sensor System Control Module -J587-
  - Shift Lock Solenoid -N110-
  - Transverse Selector Lever Lock Motor -V577-
- The components cannot be replaced separately if faulty.
- Removing and Installing. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
Selector Lever Transmission Range Display -Y5-
- Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - CENTER CONSOLE LAMPS .
Selector Lever Handle, Upper Section
- Removing and Installing. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .
Bolt
- 3.2 Nm
- Not available separately
Selector Lever Handle, Lower Section
- With the following integrated components:
  - Selector Lever Release Button -E681-
  - Parking Lock Button -E816-
- The components cannot be replaced separately if faulty.
- Removing and Installing. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .
Selector Lever Boot
- Removing and Installing. Refer to SELECTOR LEVER BOOT ON SELECTOR LEVER HANDLE, DISCONNECTING AND ASSEMBLING .
Bolt
- 8 Nm
