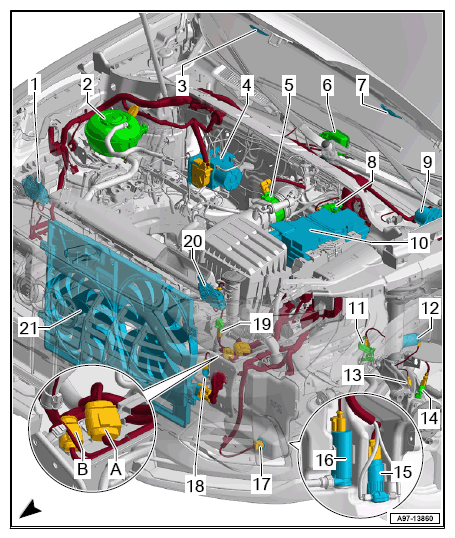

Front, View From Left, Part 1
- 14-Pin Connector -T14g-, gray/14-Pin Connector -T14gx-, gray
- 10-Pin Connector -T10k-, black/10-Pin Connector -T10kx-, black
- For Vehicles With 2.0L Gasoline Engine
- Engine hood contact switch -F266-
- Engine Coolant Level (ECL) Sensor -G32-
- Right Washer Nozzle Heater -Z21-
- ABS Control Module -J104-
- Not for USA/CAN
- Alarm Horn -H12-
- Left Washer Nozzle Heater -Z20-
- Battery Monitoring Control Module -J367-
- Wiper Motor Control Module -J400-
- Battery -A-
- Left Front Level Control System Sensor -G78-
- Left Front Dampening Adjustment Valve -N336-
- Left Front Brake Pad Wear Sensor -G34-
- Where Applicable
- Left Front Wheel Speed Sensor -G47-
- Windshield and Rear Window Washer Pump -V59-
- Headlamp Washer Pump -V11-
- Windshield Washer Fluid Level Sensor -G33-
- Not for USA/CAN
- Driver Front Airbag Crash Sensor -G283-
- Hood contact switch 2 -F329-
- Coolant Fan -VX57-
