Home >> Audi >> 2019 >> A4 Premium Plus >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Wiring Diagram [DBPA] >> Wiring Diagram(S) >> Oil Level Thermal Sensor, Engine/Motor Control Module >> Notes

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

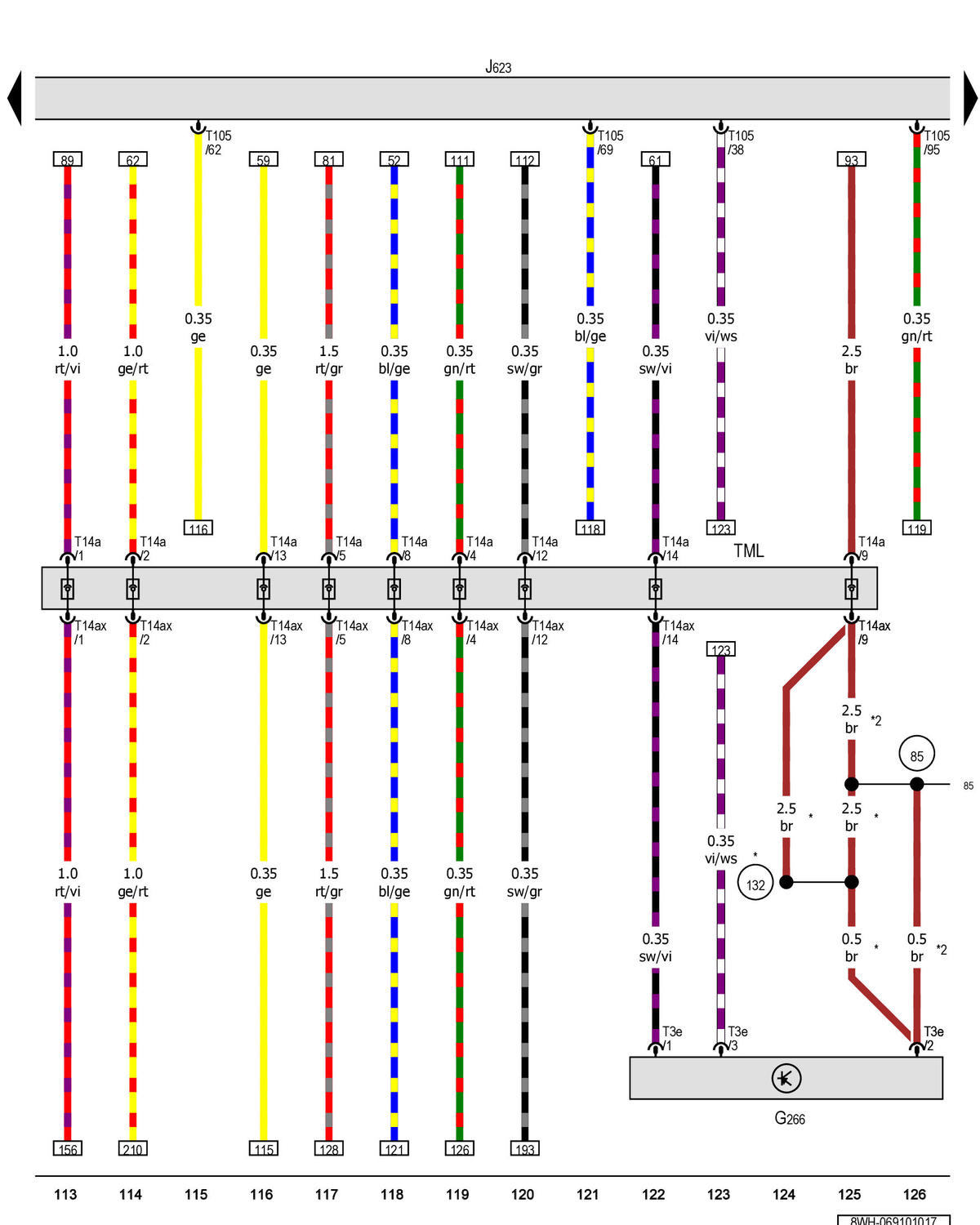

Oil Level Thermal Sensor, Engine/Motor Control Module: Notes

GWW8WH-069101017
