Wiring Diagram [DBPA]
>>
Wiring Diagram(S)
>>

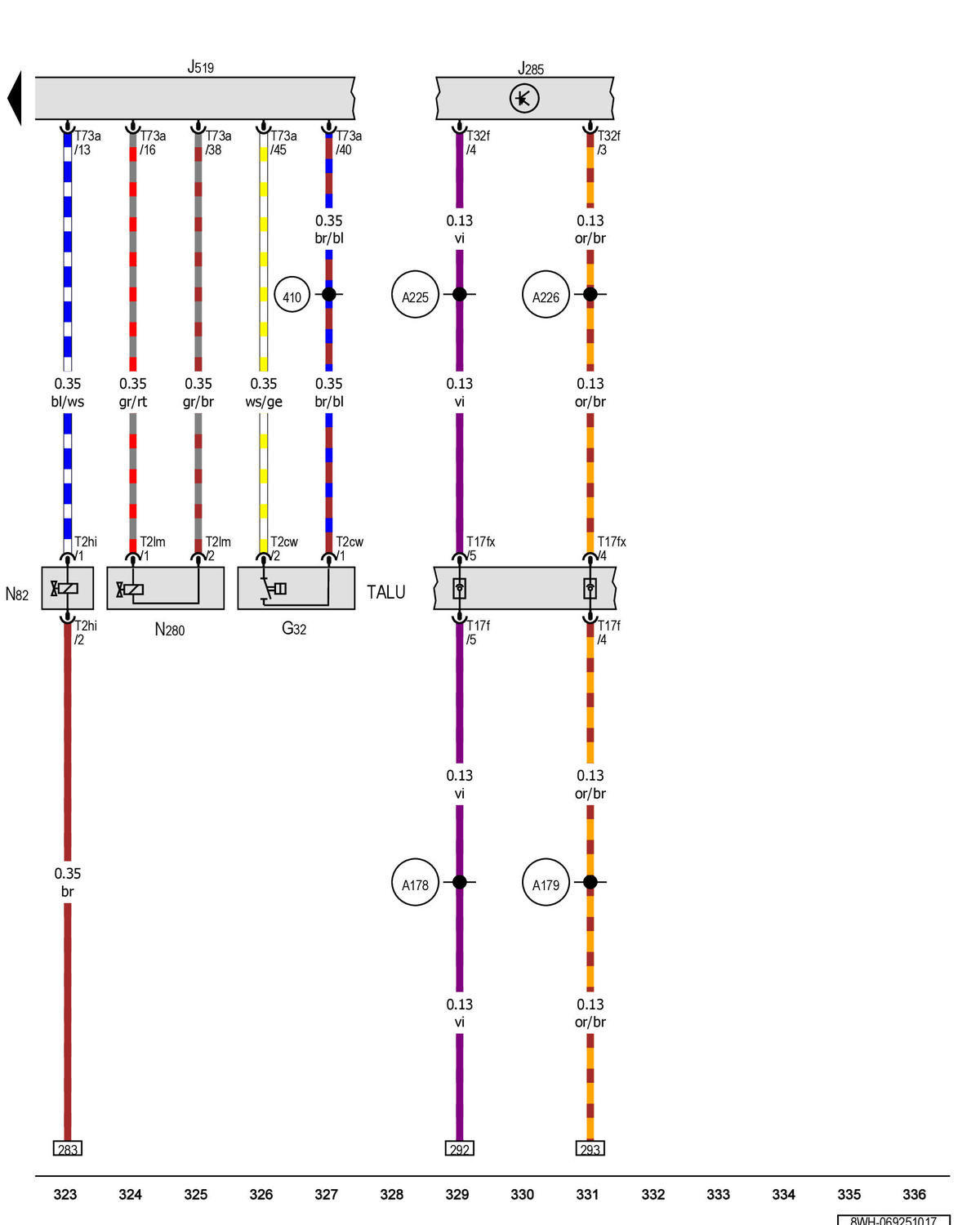

Engine Coolant Level Sensor, Instrument Cluster Control Module, Vehicle Electrical System Control Module, Coolant Shut-Off Valve, A/C Compressor Regulator Valve
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Engine Coolant Level Sensor, Instrument Cluster Control Module, Vehicle Electrical System Control Module, Coolant Shut-Off Valve, A/C Compressor Regulator Valve: Notes
