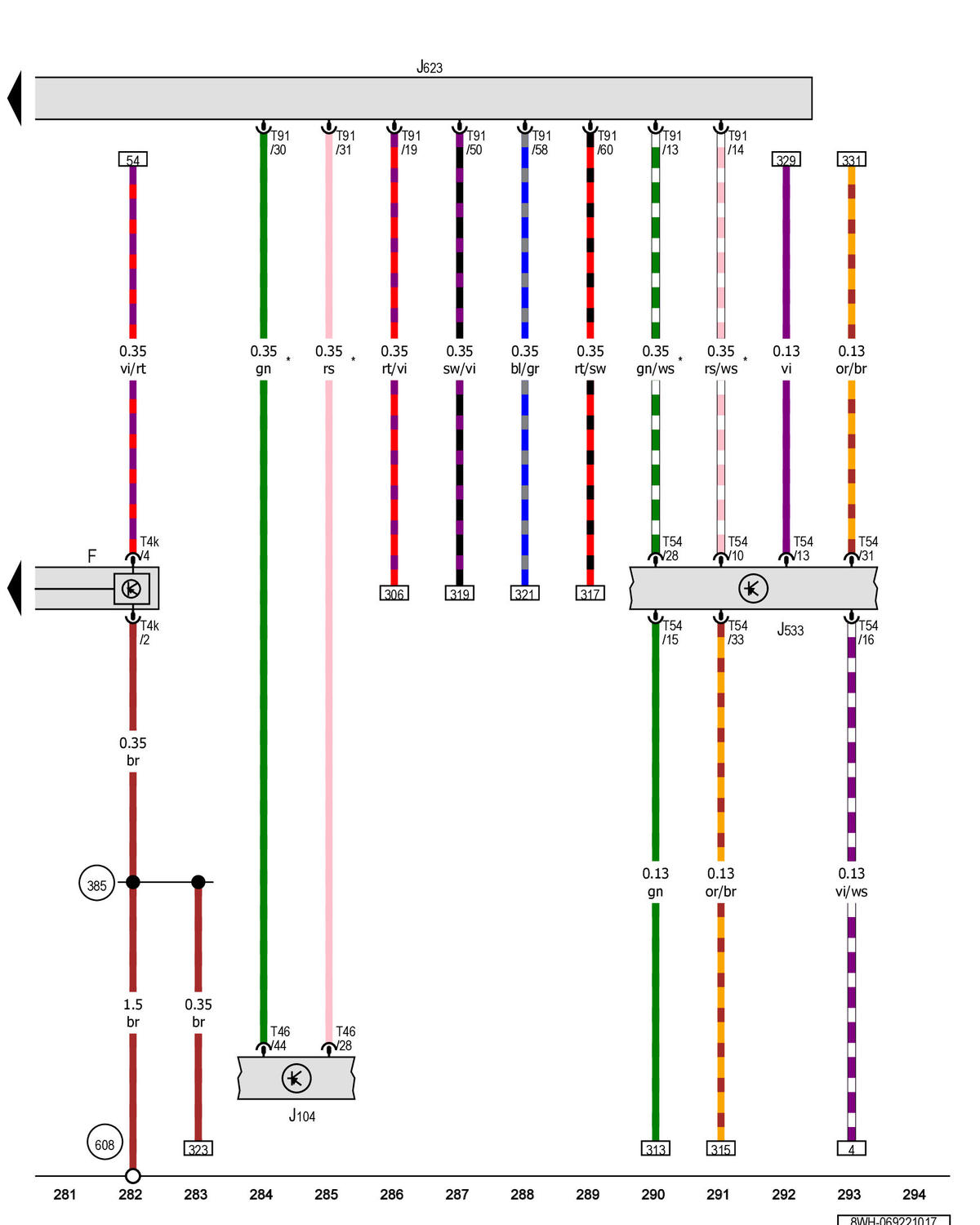

Wiring Diagram [DBPA]
>>
Wiring Diagram(S)
>>
Brake Lamp Switch, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Brake Lamp Switch, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module: Notes
