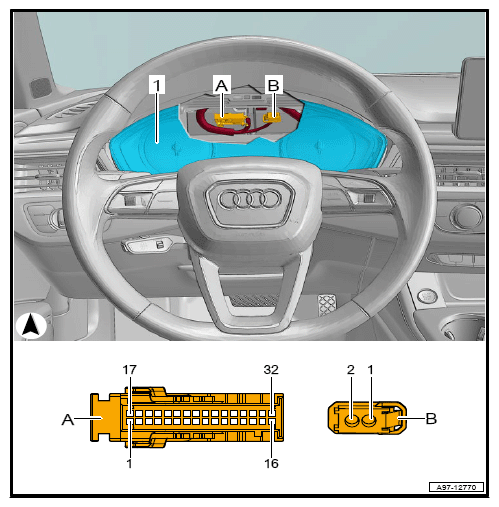

Instrument Cluster Module -J285-, W/O Display Module, Location

  1. 1  - Instrument Cluster Control Module -J285-
  2. A  - 32-Pin Connector -T32f-, Grey
  3. B  - Double Connector -T2dx-, Black
    • MOST Bus
G12767557Courtesy of AUDI OF AMERICA, LLC
