Fuel Pump (FP) Control Module -J538-Connector

6-Pin Connector -T6BL-

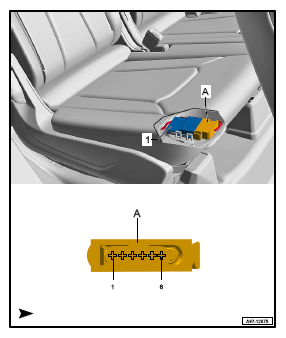

G12767522Courtesy of AUDI OF AMERICA, LLC
T6bl (A) Designation
1 Transfer Fuel Pump (FP) G6
2 Transfer Fuel Pump (FP) G6
3 Transfer Fuel Pump (FP) G6
4 Terminal 31
5 Terminal 87
6 Engine Control Module (ECM) J623
