Close Range Communication Control Module 2 -J1170- Connector View

5-PIN CONNECTOR -T5CC-/2-PIN CONNECTOR -T2NF-

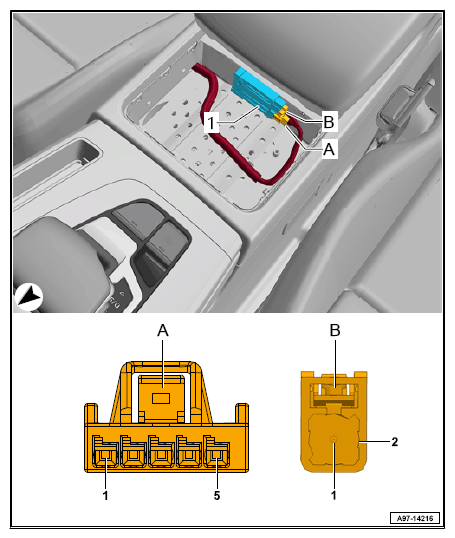

G12779479Courtesy of AUDI OF AMERICA, LLC
-T5cc- (A) Destination
1 Kl. 30
2 CAN-Bus
3 CAN-Bus
4 Kl. 31
5 Telephone Baseplate -R126-
-T2nf- (B) Destination
1 Close Range Communication Antenna 2 -R351-
2 Close Range Communication Antenna 2 -R351-

Back To Overview  → COMPONENTS OVERVIEW  .
