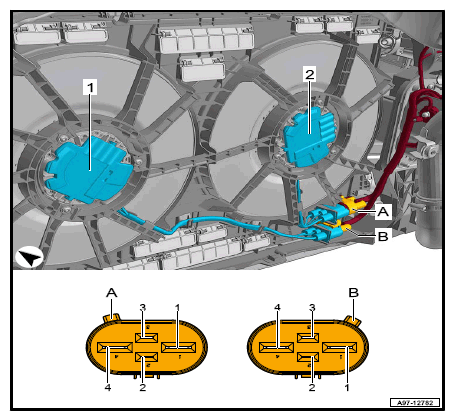

Coolant Fan Control Module 2 -J671- Location

With 800 Watt Or 1200 Watt

  1. Coolant Fan Control (FC) Control Module 2 -J671-
  2. Coolant fan control module -J293-
  1. 4-Pin Connector -T4Bk-, Black
  2. 4-Pin Connector -T4Bi-, Black
G12779382Courtesy of AUDI OF AMERICA, LLC
