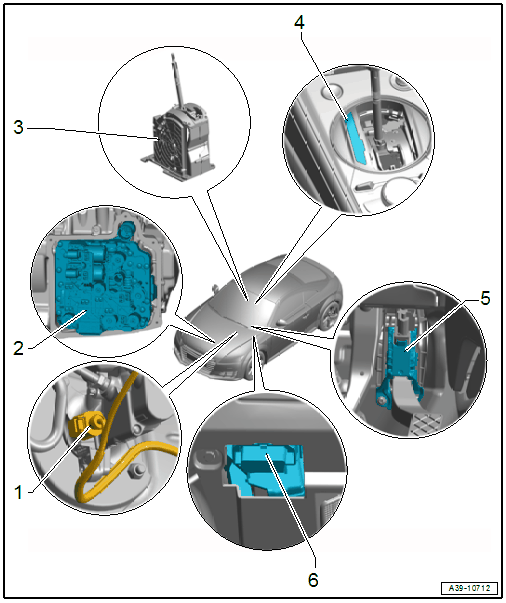

Component Location Overview - Transmission Control
- Brake Lamp Switch -F- /Brake Pedal Switch -F63-
- On the brake master cylinder
- Component location overview. Refer to OVERVIEW - COMPONENT LOCATION, ABS/ESP .
- Dual-Clutch Transmission Mechatronic -J743-
- Bolted to the front of the transmission housing.
- Removing and installing. Refer to MECHATRONIC, REMOVING AND INSTALLING .
- Selector Lever -E313-
- With Selector Lever Sensor System Control Module -J587-, Shift Lock Solenoid -N110- and Selector Lever Park Position Lock Switch -F319-
- The components are integrated in the selector mechanism circuit board and cannot be replaced separately.
- Selector mechanism, removing and installing. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
- Selector Lever Transmission Range Position Display Unit -Y26-
- Removing and installing. Refer to Selector Lever Transmission Range Position Display Unit -Y26-, REMOVING AND INSTALLING .
- Kick Down Switch
- A programmed value for the Accelerator Pedal Position Sensor -G79- /Accelerator Pedal Position Sensor 2 -G185- (integrated in accelerator pedal module) is saved in the engine control module as a kick-down signal.
- Signal transmitted from engine control module to transmission control module via the CAN bus.
- Accelerator pedal module. Refer to OVERVIEW - ACCELERATOR PEDAL MODULE .
- Data Link Connector
- For the Vehicle Diagnostic Tester
- In driver footwell
- Check all of the listed components using the Vehicle Diagnostic Tester in Guided Fault Finding .
