Fuel Pump Control Module -J538- Connector Views Diesel

6-PIN CONNECTOR -T6I- (B)

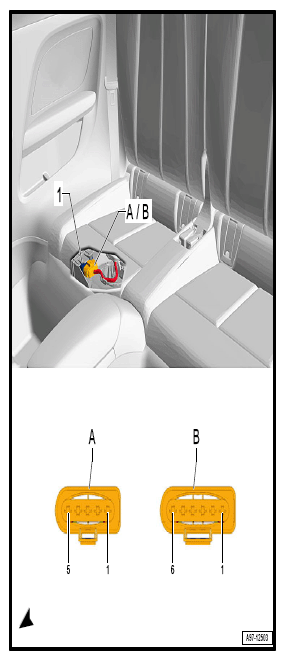

G12778544Courtesy of AUDI OF AMERICA, LLC
T6I (B) Designation
1 Transfer Fuel Pump (FP) G6
2 Transfer Fuel Pump (FP) G6
3 Transfer Fuel Pump (FP) G6
4 Terminal 31, to 375 Ground Connection 10 (in main wiring harness)
730 Ground connection 1 on right rear wheel housing
5 Terminal 30, from Fuse Panel B SB
6 Engine Control Module (ECM) J623
