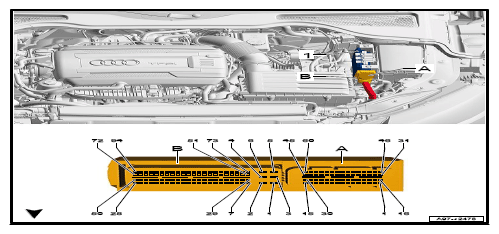

J623 W/154-Pin

  1. 1  - Engine Control Module (ECM) -J623-
  2. A  - 60-Pin Connector -T60-, black
  3. B  - 94-Pin Connector -T94-, black
G12778498Courtesy of AUDI OF AMERICA, LLC
