Vehicle Identification Number
WARNING:
Warning information for the high voltage system:
Procedures for which the ignition needs to be switched off. Refer to PROCEDURES FOR WHICH THE IGNITION NEEDS TO BE SWITCHED OFF .
The VIN is located:
NOTE:
Country-specific versions.

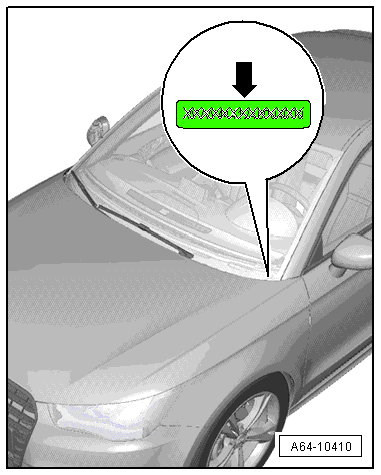

- on the lower edge of the windshield -arrow-
- on the upper right wheel housing longitudinal member
- on the vehicle data label. Refer to VEHICLE DATA LABEL .
- and in the MMI under Car Systems .
Meaning of Vehicle Identification Number (VIN)
| WAU | ZZZ | 4G | Z | D | A/N | 000 234 |
|---|---|---|---|---|---|---|
| Manufacturer code | Filler character | Type | Filler character | MY 2011 | Producing Factory | Serial number |
