Digital Sound System Control Module Connector End View (J525)

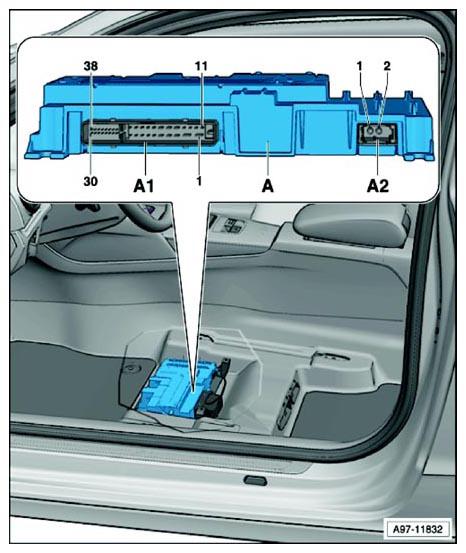

Fig 1: Digital Sound System Control Module Connector End View (J525)
Courtesy of AUDI OF AMERICA, LLC
A
Digital Sound System Control Module -J525-
A1
38-Pin Connector, black
A2
Double Connector, black
