Component Location Overview - Navigation System, MMI Navigation Plus, 7T6

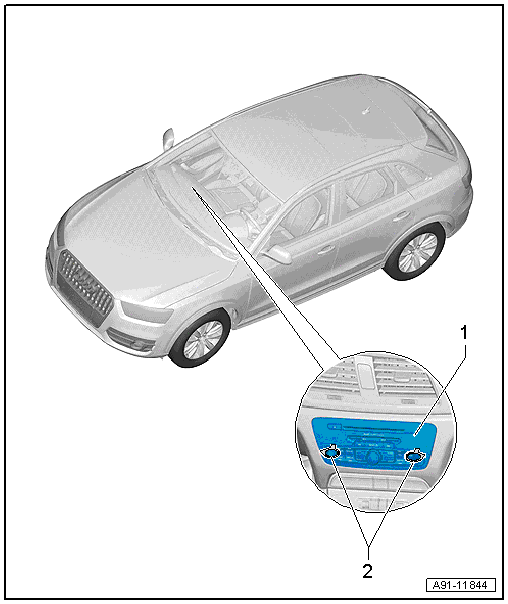

Fig 1: Components Location - Navigation System (MMI Navigation Plus, 7T6)

Courtesy of AUDI OF AMERICA, LLC

1. Information Electronics Control Module 1 -J794-
   • Ready4Nav connector assignment. Refer to CONNECTOR ASSIGNMENTS, READY4NAV 7Q4, NAVIGATION PACKET 7T2 .
   • MMI navigation plus connector assignment. Refer to CONNECTOR ASSIGNMENT, MMI NAVIGATION PLUS, 7T6 .
   • Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
2. Radio Removal Tool:T10057
