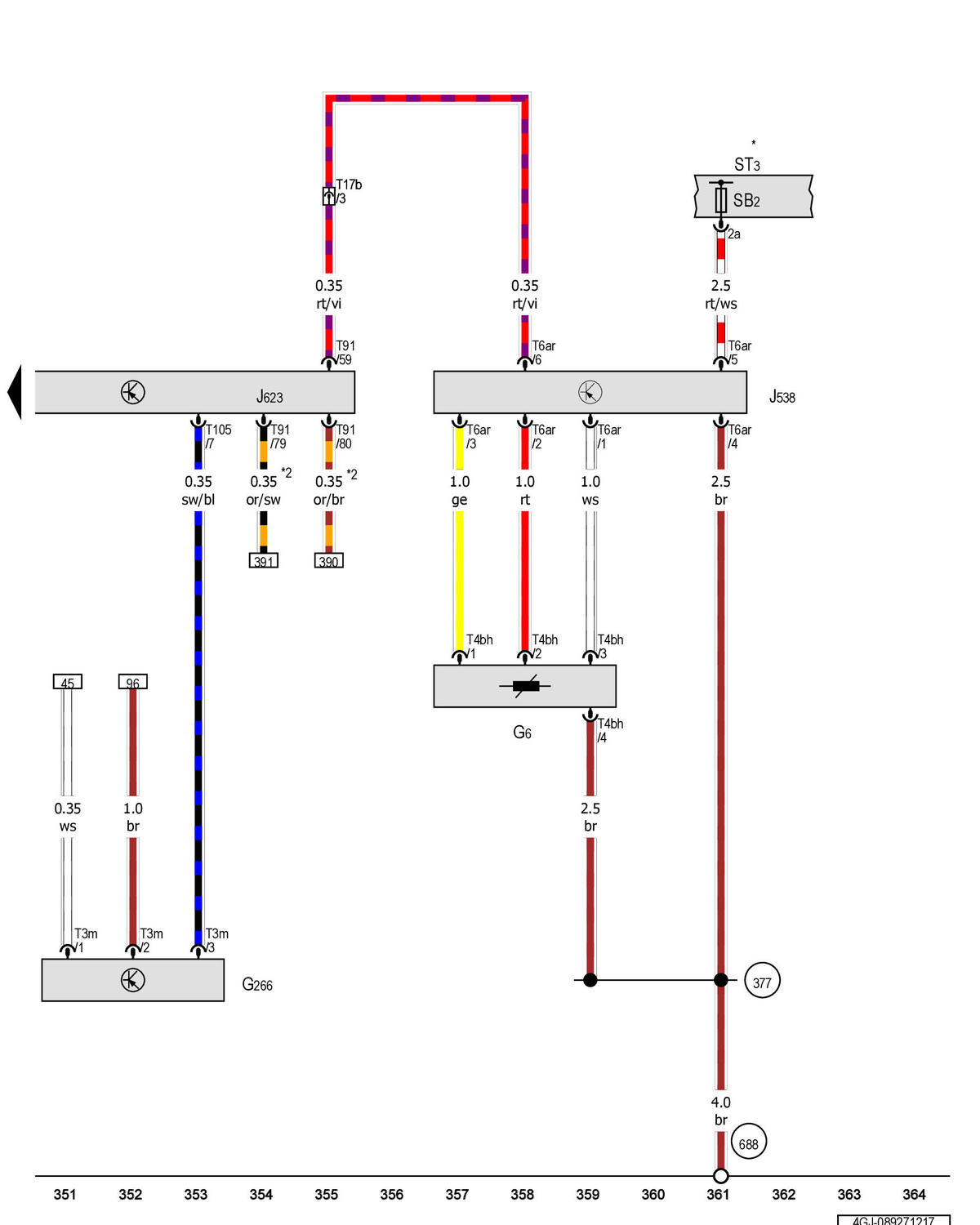

Transfer Fuel Pump, Oil Level Thermal Sensor, Fuel Pump Control Module, Engine/Motor Control Module: Notes

GWW4GJ-089271217Courtesy of AUDI OF AMERICA, LLC
