Towing Recognition Control Module -J345- Connector Views, T24

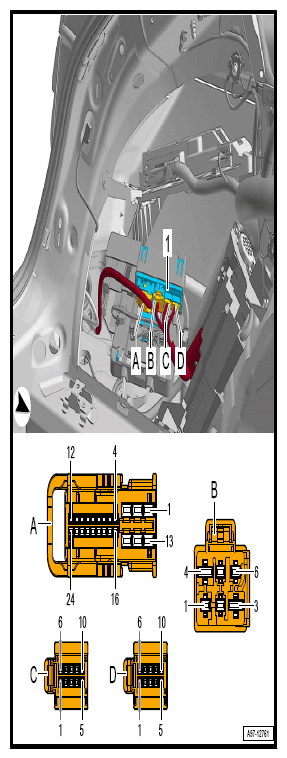

24-pin connector -T24- (A)

G12767565Courtesy of AUDI OF AMERICA, LLC
T24 (A) Designation
1 Trailer Socket U10
2 Trailer Socket U10
3 Trailer Socket U10
4
5 Swivelling Ball Head Motor V317
6
7 Swivelling Ball Head Motor V317
8
9
10
11
12 Trailer Socket U10
13 Swivelling Ball Head Motor V317
14 Swivelling Ball Head Motor V317
15 Trailer Socket U10
16
17
18 Trailer Socket U10
19 Trailer Socket U10
20
21
22
23 Trailer Socket U10
24 Trailer Socket U10
