Coolant Fan Control Module J293
>>
Coolant Fan Control Module -J293- Connector View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

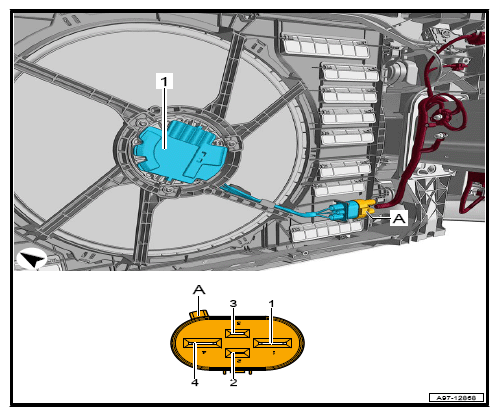

Coolant Fan Control Module -J293- Connector View
4-pin connector -T4bi- (A)
Courtesy of AUDI OF AMERICA, LLC
T4bi (A)
Designation
1
Terminal 30
2
Relay and fuse carrier 1 SR1, Fuse carrier 1 ST1
3
Engine Control Module (ECM) J623
4
Terminal 31
Courtesy of AUDI OF AMERICA, LLC
