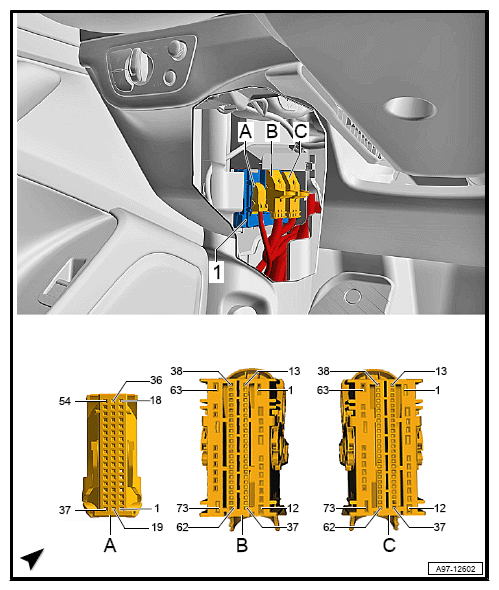

Vehicle Electrical System Control Module -J519- Location

  1. 1 - Vehicle Electrical System Control Module -J519-
  2. A - 54-Pin Connector -T54c- (connector C), black
  3. B - 73-Pin Connector -T73a- (connector A), black
  4. C - 73-Pin Connector -T73b- (Connector B), black
G12767512Courtesy of AUDI OF AMERICA, LLC
