Transmission, Transporting

Special tools and workshop equipment required

Procedure

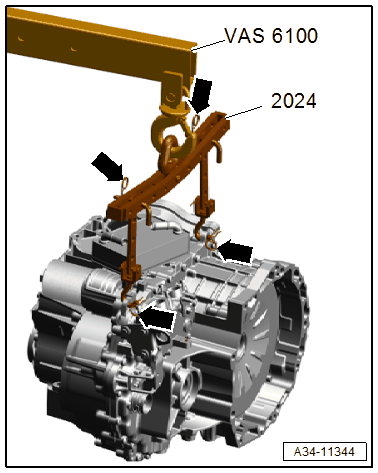

GWWA34-11344Courtesy of AUDI OF AMERICA, LLC

-- Engage the : 2024A  to the transmission lifting eyes and secure with the securing pins -arrows-.

-- Engage the : VAS6100  to the : 2024A  .

CAUTION:

Risk of Damaging the Transmission Fluid Cooler.

- Guide the transmission when transporting.
