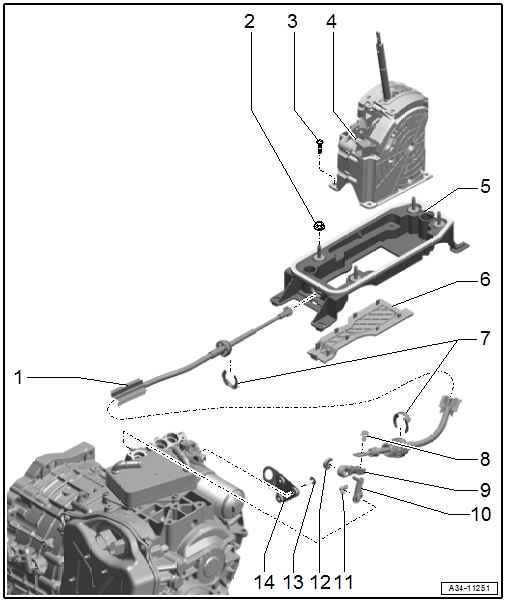

Overview - Selector Mechanism
- Selector Lever Cable
- Can only be replaced with the selector mechanism. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
- Nut
- 8 Nm
- For selector mechanism to body
- Quantity: 4
- Bolt
- 4 Nm
- For the selector mechanism to the selector housing
- Quantity: 4
- Selector Mechanism
- Checking using the Vehicle Diagnostic Tester, Guided Fault Finding
- Perform selector mechanism emergency release. Refer to EMERGENCY RELEASE FROM P .
- Removing and Installing. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
- Do not lubricate the selector lever cable
- Shifter Housing
- Base Plate
- Replace after removing
- Clamps
- Replace after removing
- Bolt
- 12 Nm
- Selector lever cable adjusting bolt
- Joint
- Shift Lever
- Nut
- 20 Nm
- Lock Washer
- Bolt
- 20 Nm
- Cable Bracket
- For the selector lever cable
