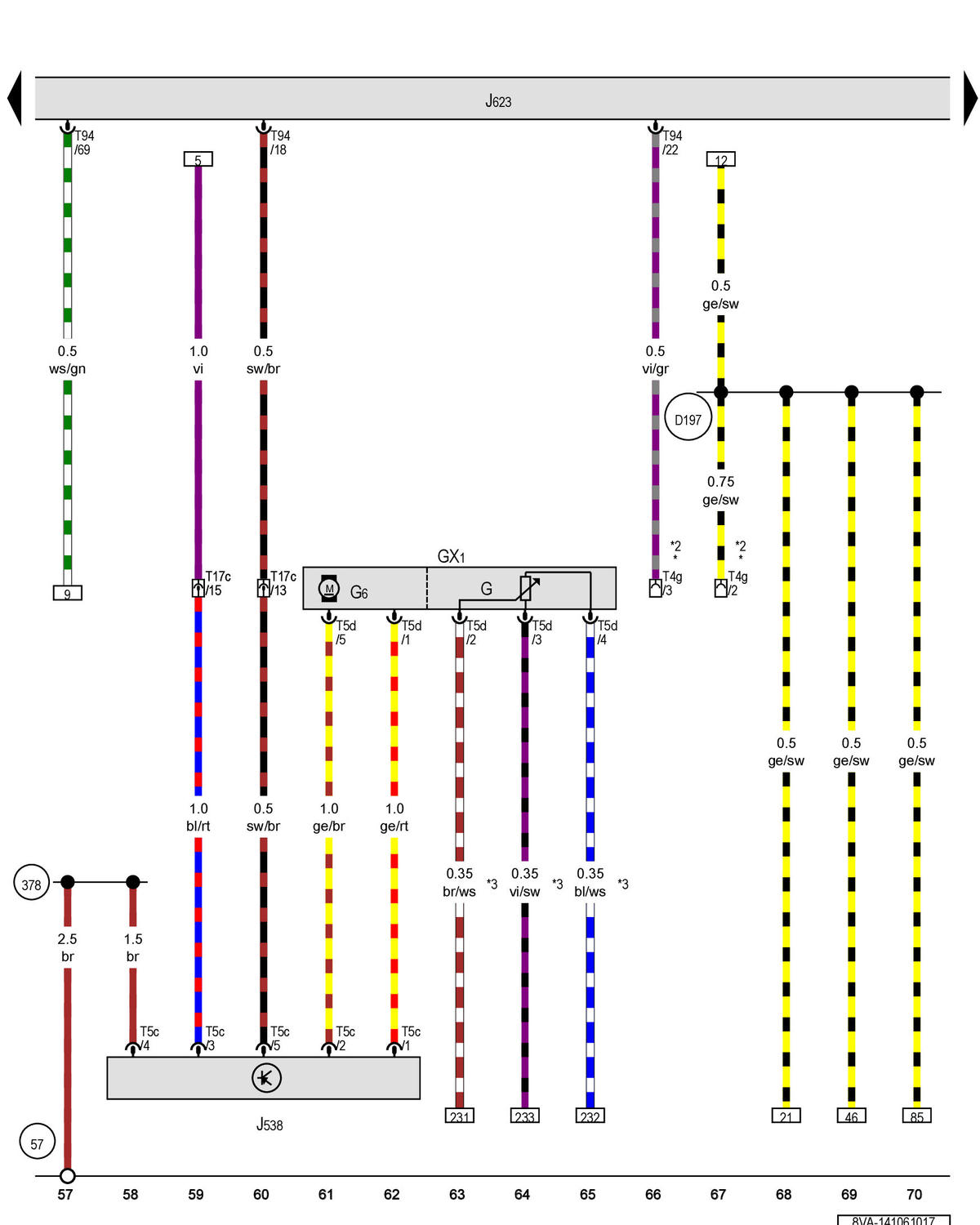

Fuel Level Sensor, Fuel Delivery Unit, Transfer Fuel Pump, Engine/Motor Control Module: Notes

GWW8VA-141061017Courtesy of AUDI OF AMERICA, LLC
