Seat Adjustment Control Module, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the outer single seat. Refer to SINGLE SEAT, REMOVING AND INSTALLING .
-- If equipped, remove the rear cover in the backrest.

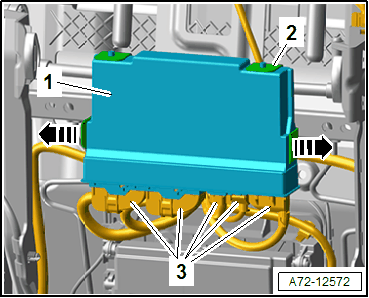

-- Release the tabs using a flat-head screwdriver -arrows-.
-- Remove the control module -1- from the bracket -2-.
-- Release the connector safety catch and disconnect the connectors -3-.
