Transmission Control Module (TCM) Connector End View (J217, T52A)

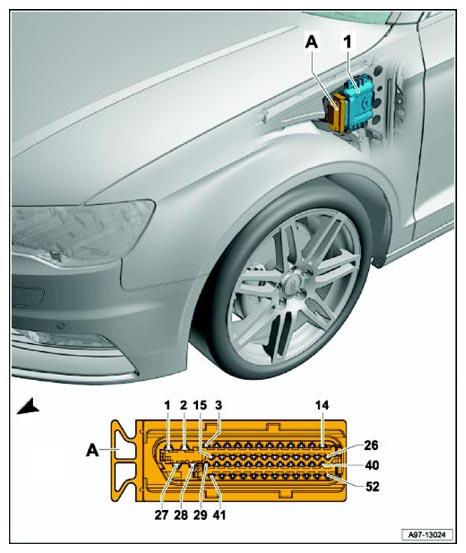

Fig 1: Transmission Control Module (TCM) Connector End View (J217, T52a)
Courtesy of AUDI OF AMERICA, LLC
1
Transmission Control Module (TCM) -J217-
A
52-Pin Connector -T52a-, black
