Airbag Control Module Connector End View (J234, T50)
Behind the center consol.

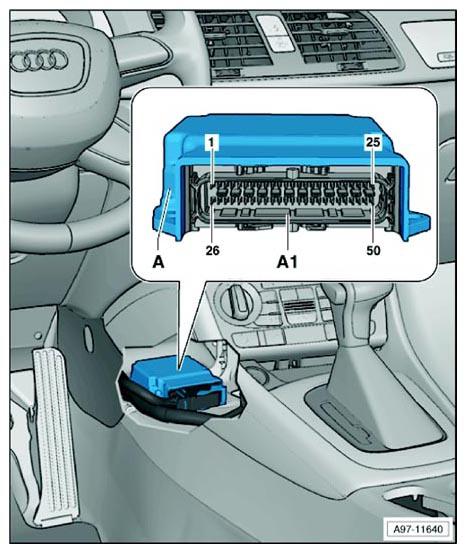

Fig 1: Airbag Control Module Connector End View (J234, T50)
Courtesy of AUDI OF AMERICA, LLC
A
Airbag Control Module -J234-
A1
50-Pin Connector -T50-, yellow
Courtesy of AUDI OF AMERICA, LLC
