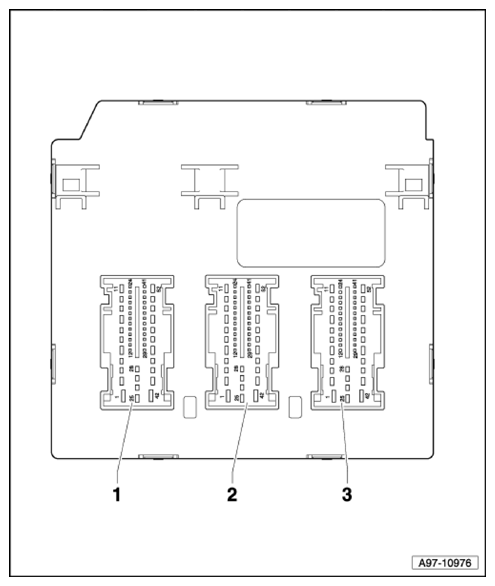

Pin Arrangements Vehicle Electrical System Control Module -J519-

Courtesy of AUDI OF AMERICA, LLC

1. 52-Pin Connector -T52A-, Black
2. 52-Pin Connector -T52B-, Yellow
3. 52-Pin Connector -T52C-, Brown

Courtesy of AUDI OF AMERICA, LLC
