Lane Change Assistance Control Module Connector End View (J769, T12G)

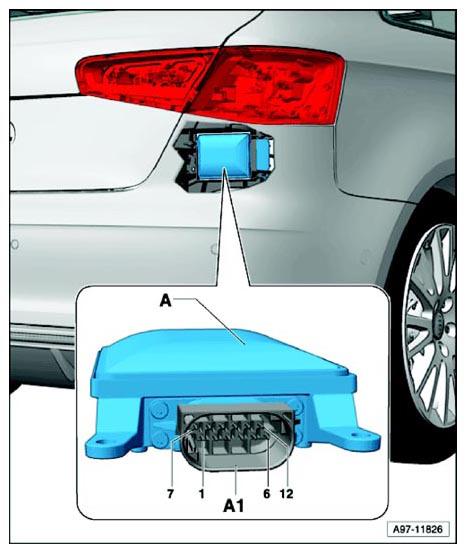

Fig 1: Lane Change Assistance Control Module Connector End View (J769, T12g)
Courtesy of AUDI OF AMERICA, LLC
A
Lane Change Assistance Control Module -J769-
A1
12-Pin Connector -T12g-, black
