Electronic Steering Column Lock Control Module Connector End View (J764, T16G)

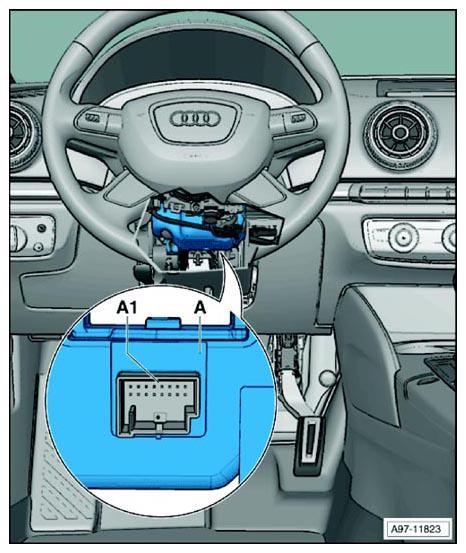

Fig 1: Electronic Steering Column Lock Control Module Connector End View (J764, T16g)
Courtesy of AUDI OF AMERICA, LLC
A
Electronic Steering Column Lock Control Module -J764-
A1
16-Pin Connector -T16g-, black
