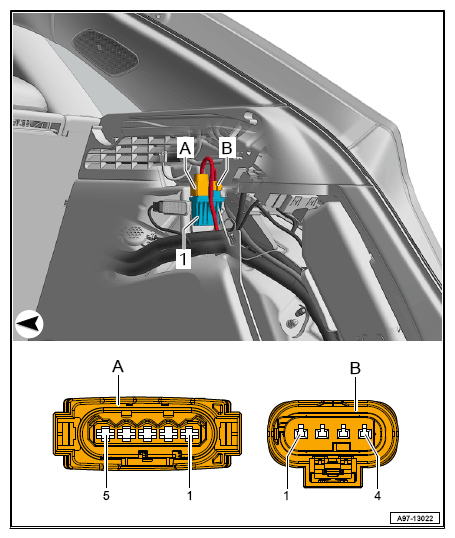

Reducing Agent Heater Control Module -J891-, Connector View

5-PIN CONNECTOR -T5P-/4-PIN CONNECTOR -T4BO-

  1. 5-Pin Connector -T5P-, Translucent
  2. 4-Pin Connector -T4Bo-, Black
G12775425Courtesy of AUDI OF AMERICA, LLC
