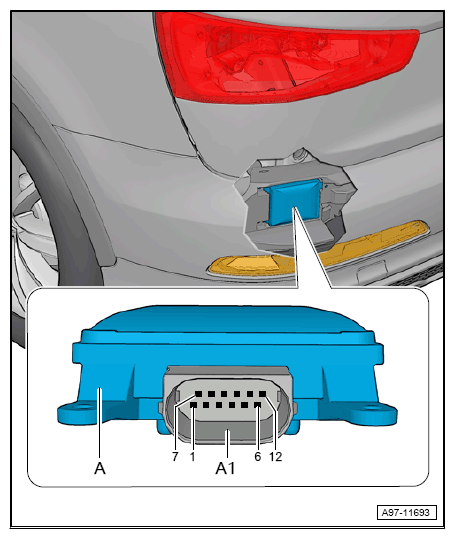

Lane Change Assistance Control Module 2 -J770-, Connector View

12-PIN CONNECTOR -T12H-

  1. A1  - 12-Pin Connector -T12H-, Black
G12775415Courtesy of AUDI OF AMERICA, LLC
