Steering Column Electronic Systems Control Module Connector End View (J527, T4, T16c)

On steering column.

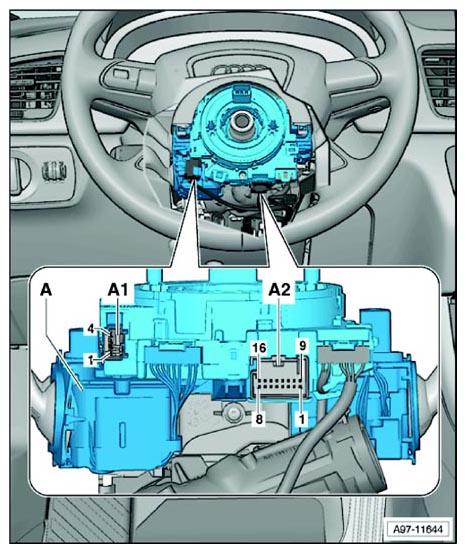

Fig 1: Steering Column Electronic Systems Control Module Connector End View (J527, T4, T16c)
G10360308Courtesy of AUDI OF AMERICA, LLC
A Steering Column Electronic Systems Control Module -J527-
A1 4-Pin Connector -T4-, yellow
A2 16-Pin Connector -T16-, black
