Fuel Pump (FP) Control Module Connector End View (J538, T5c)
Below reat seat.

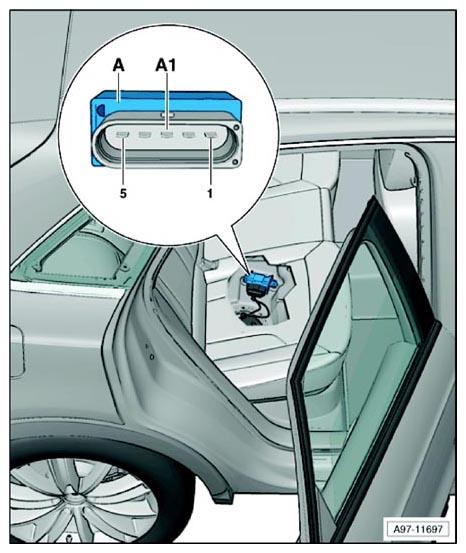

Fig 1: Fuel Pump (Fp) Control Module Connector End View (J538, T5c)
Courtesy of AUDI OF AMERICA, LLC
A
Fuel Pump (FP) Control Module -J538-
A1
6-Pin Connector -T5c-, black
