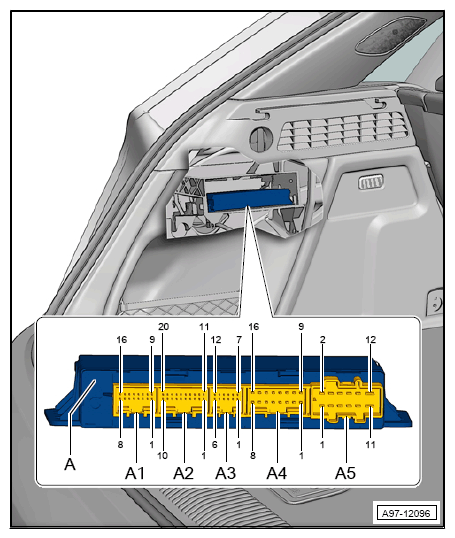

Special Purpose Vehicle Control Module -J608-, Location

  1. A  - Special Purpose Vehicle Control Module -J608-
  2. A1  - 16-Pin Connector -T16T-, Brown
  3. A2  - 20-Pin Connector -T20M-, Brown
  4. A3  - Not Used
  5. A4  - Not Used
  6. A5  - 12-Pin Connector -T12Ai-, Black
G12775421Courtesy of AUDI OF AMERICA, LLC
