Driver's Door Control Module -J386- Connector Views

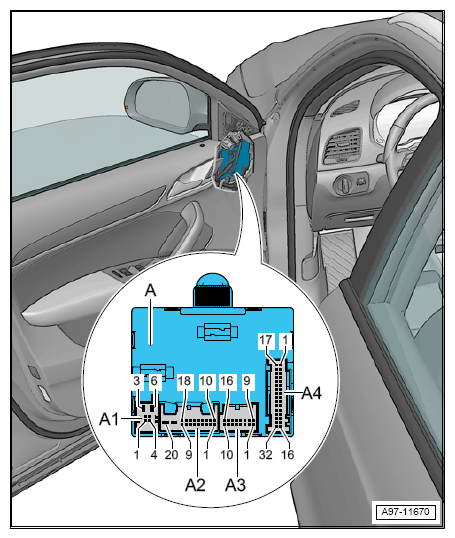

6-PIN CONNECTOR -T6F-/20-PIN CONNECTOR -T20C-/16-PIN CONNECTOR -T16E-/32-PIN CONNECTOR -T32B-

  1. A1  - 6-Pin Connector -T6F-, Black
  2. A2  - 20-Pin Connector -T20C-, Black
  3. A3  - 16-Pin Connector -T16E-, Black
  4. A4  - 32-Pin Connector -T32B-, Blue
G12775345Courtesy of AUDI OF AMERICA, LLC
