Battery Monitoring Control Module -J367- Connector Views

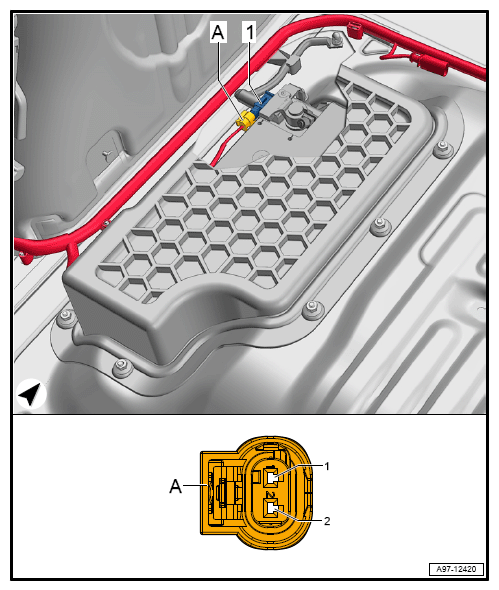

Double Connector -T2FK-

  1. A  - Double Connector -T2FK-, Black
G12759858Courtesy of AUDI OF AMERICA, LLC
