Electronic Steering Column Lock Control Module Connector End View (J764, T4l)

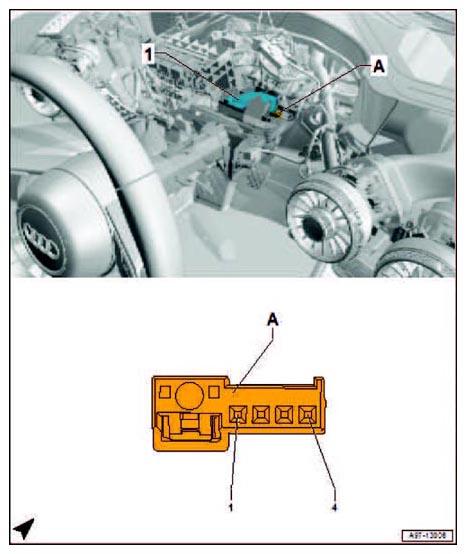

Fig 1: Electronic Steering Column Lock Control Module Connector End View (J764, T4l)

Courtesy of AUDI OF AMERICA, LLC

1	Electronic Steering Column Lock Control Module -J764-
A	4-Pin Connector -141-

-T4I- (A)	Designation
1	Comfort System CAN-Bus High, to B397 Comfort System CAN-Bus High Connection 1 (in main wiring harness)
2	Comfort System CAN-Bus Low, to B406 Comfort System CAN-Bus Low Connection 1 (in main wiring harness)
3	Terminal 30, from Fuse panel C -SC-
4	Terminal 31, to 639 Ground Connection (on left A-pillar)
