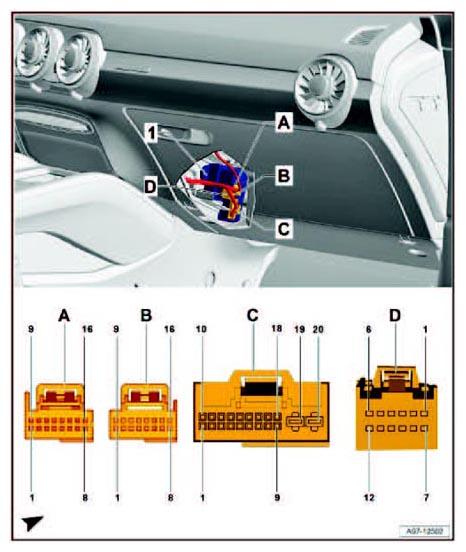

Climatronic Control Module Connector End View (J255, T16d, T16e, T20c, T12d)
| 1 | Climatronic Control Module -J255- |
| A | 16-Pin Connector -T16d-, black |
| B | 16-Pin Connector -T16e-, brown |
| C | 20-Pin Connector -T20c-, black |
| D | 12-Pin Connector -T12d-, black |
| -T16d- (A) | Designation | -T16e- (B) | Designation |
|---|---|---|---|
| 1 | Left Temperature Flap Motor -V158- | 1 | 5V-output, to L2 Connection (in A/C system wiring harness) Front Air Distribution Flap Motor Position Sensor -G642- Fresh Air, Recirculating Air Mode, Back Pressure Flap Motor Position Sensor -G644- Left Temperature Flap Potentiometer/Actuator -G220- Right Temperature Flap Potentiometer/Actuator -G221- Defroster Flap Motor Position Sensor -G135- |
| 2 | Left Temperature Flap Motor -V158- | 2 | Left Temperature Flap Potentiometer/Actuator -G220- |
| 3 | Defroster Flap Motor -V107- | 3 | Right Temperature Flap Potentiometer/Actuator -G221- |
| 4 | Defroster Flap Motor -V107- | 4 | Defroster Flap Motor Position Sensor -G135- |
| 5 | Front Air Distribution Flap Motor -V426- | 5 | Front Air Distribution Flap Motor Position Sensor -G642- |
| 6 | Front Air Distribution Flap Motor -V426- | 6 | |
| 7 | 7 | Fresh Air, Recirculating Air Mode, Back Pressure Flap Motor Position Sensor -G644- | |
| 8 | 8 | Footwell Outlet Temperature Sensor -G192- | |
| 9 | Fresh Air, Recirculating Air Mode, Back Pressure Flap Motor -V425- | 9 | |
| 10 | Fresh Air, Recirculating Air Mode, Back Pressure Flap Motor -V425- | 10 | |
| 11 | Right Temperature Flap Motor -V159- | 11 | Evaporator Vent Temperature Sensor -G263- |
| 12 | Right Temperature Flap Motor -V159- | 12 | |
| 13 | 13 | ||
| 14 | 14 | Ground, to 97 Ground connection 1 (in A/C wiring harness) Front Air Distribution Flap Motor Position Sensor -G642- Fresh Air, Recirculating Air Mode, Back Pressure Flap Motor Position Sensor -G644- Left Temperature Flap Potentiometer/Actuator -G220- Right Temperature Flap Potentiometer/Actuator -G221- Defroster Flap Motor Position Sensor -G135- Footwell Outlet Temperature Sensor -G192- Evaporator Vent Temperature Sensor -G263- |
|
| 15 | 15 | ||
| 16 | 16 |
| -T20c- (C) | Designation | -T12d- (D) | Designation |
|---|---|---|---|
| 1 | Sunlight Photo Sensor -G107- Sunlight Photo Sensor 2 -G134- |
1 | Instrument Panel Interior Temperature Sensor -G56- |
| 2 | 2 | Instrument Panel Interior Temperature Sensor -G56- | |
| 3 | Sunlight Photo Sensor -G107- Sunlight Photo Sensor 2 -G134- |
3 | Instrument Panel Interior Temperature Sensor -G56- |
| 4 | Terminal 30, to B469 Connection 5 in main wiring harness Front A/C display control head 2 -E775- Front A/C display control head 3 -E776- Front A/C display control head 4 -E777- Front A/C display control head 1 -E774- Front A/C display control head 5 -E778- |
4 | Instrument Panel Interior Temperature Sensor -G56- |
| 5 | Comfort System CAN-Bus High, to B398 Comfort System CAN-Bus High Connection 2 (in main wiring harness) Data Bus On Board Diagnostic Interface -J533- |
5 | Right Front Defrost/Upper Body Shut-Off Flap Motor Position Sensor -G317- |
| 6 | Comfort System CAN-Bus Low, to B407 Comfort System CAN-Bus Low Connection 2 (in main wiring harness) Data Bus On Board Diagnostic Interface -J533- |
6 | Right Front Defrost/Upper Body Shut-Off Flap Motor Position Sensor -G317- |
| 7 | Ground to 379 Ground connection 14 (in main wiring harness) Front A/C display control head 2 -E775- Front A/C display control head 3 -E776- Front A/C display control head 4 -E777- Front A/C display control head 1 -E774- Front A/C display control head 5 -E778- |
7 | Defrost button -E782- |
| 8 | 8 | Defrost indicator lamp -K285- | |
| 9 | 5V output to B369 Connection 1 (5V) (in main wiring harness) Sunlight Photo Sensor -G107- Sunlight Photo Sensor 2 -G134- Right side window defroster door motor -V410- Left side window defroster door motor -V409- |
9 | Heated Rear Window Button -E230- |
| 10 | Left Front Defrost/Upper Body Shut-Off Flap Motor Position Sensor -G318- | 10 | Rear Window Defogger Indicator Lamp -K10- |
| 11 | Left Front Defrost/Upper Body Shut-Off Flap Motor Position Sensor -G318- | 11 | Ground, to 378 Ground connection 13 (in main wiring harness) Defrost button -E782- Heated Rear Window Button -E230- |
| 12 | Left Front Defrost/Upper Body Shut-Off Flap Motor Position Sensor -G318- | 12 | Right Front Defrost/Upper Body Shut-Off Flap Motor Position Sensor -G317- |
| 13 | Left Vent Temperature Sensor -G150- (left-hand drive) Right Vent Temperature Sensor -G151- (right-hand drive) |
||
| 14 | |||
| 15 | LIN-Bus, to B710 LIN-Bus Connection 5 (in main wiring harness) Front A/C display control head 2 -E775- Front A/C display control head 3 -E776- Front A/C display control head 4 -E777- Front A/C display control head 1 -E774- Front A/C display control head 5 -E778- |
||
| 16 | LIN-Bus, to B699 LIN-Bus Connection 4 (in main wiring harness) Fresh Air Blower Control Module -J126- D108 Connection 6 (in engine compartment wiring harness) Refrigerant circuit pressure sensor -G805- Humidity Sensor in Fresh Air Intake Duct -G657-, Air Quality Sensor -G238- |
||
| 17 | Ground sensors, to 377 Ground Connection 12 (in main wiring harness) | ||
| 18 | A/C Compressor Regulator Valve -N280- | ||
| 19 | Terminal 31, to 372 Ground Connection 7 (in main wiring harness) 687 Ground Connection 1 (on center tunnel) |
||
| 20 | Terminal 30, from Fuse Panel C -SC- Safety fuse 3 -S133- |
