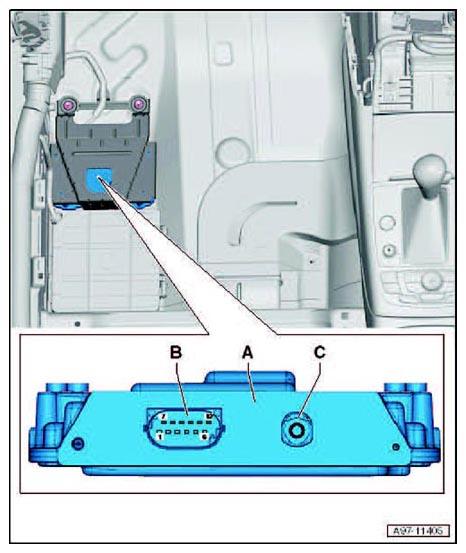

Image Processing Control Module Connector End View (J851, T12i, T5i)
Courtesy of AUDI OF AMERICA, LLC
| A |
Image Processing Control Module -J851- |
| B |
12-Pin Connector -T12i-, black |
| C |
5-Pin Connector -T5i-, black |

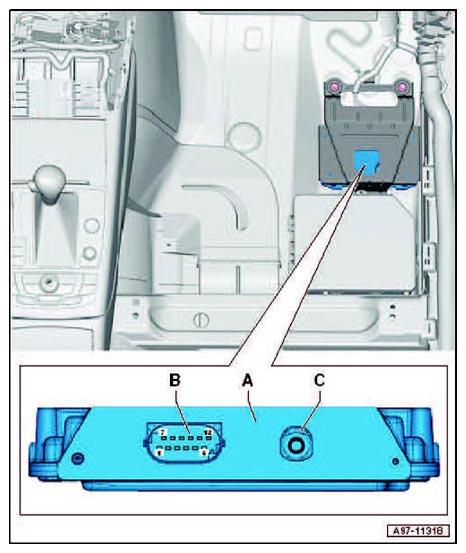

Courtesy of AUDI OF AMERICA, LLC
| A |
Image Processing Control Module -J851- |
| B |
12-Pin Connector -T12i-, black |
| C |
5-Pin Connector -T5i-, black |
