Cigarette Lighter, 12 Volt Outlet, Overview

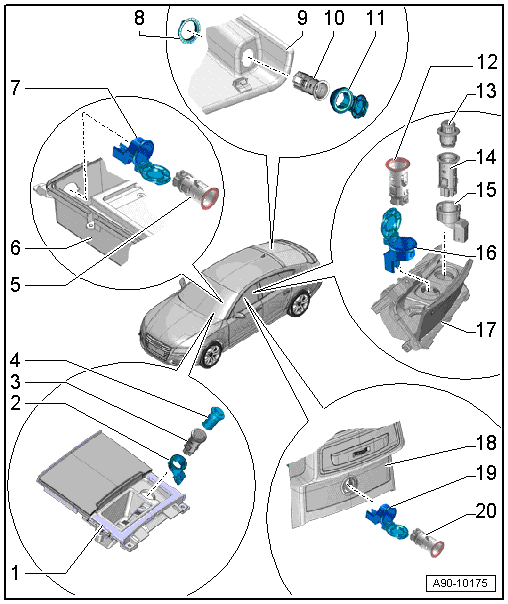

Fig 1: Overview Of Cigarette Lighter, 12 Volt Outlet

Courtesy of AUDI OF AMERICA, LLC

Front Ashtray
- For the Cigarette lighter -U1-.
Cigarette Lighter Illumination -L28-
- For the Cigarette lighter -U1-.
- Can only be replaced together with the cigarette lighter.
Cigarette Lighter -U1-
- Removing and installing, refer to CIGARETTE LIGHTER -U1- .
Cigarette Lighter
12 V Outlet -U5-
- Removing and installing, refer to SOCKET ILLUMINATION BULB, 12 V SOCKET .
Storage Compartment
- In center console
Socket Illumination -L42-
- For the 12 V socket -U5-
- Removing and installing, refer to SOCKET ILLUMINATION BULB, 12 V SOCKET .
Nut
- 2 Nm
Luggage Compartment Side Trim Panel Cover
12 V Socket 3 -U19-
- Removing and installing, refer to 12 V SOCKET 3 FROM TRIM PANEL .
- Removing and installing, refer to 12 V SOCKET 3 .
Mount With Cover
- For the 12 V socket 3 -U19-.
12 V Socket 4 -U20-
- Removing and installing, refer to SOCKET ILLUMINATION BULB, 12 V SOCKET 4 .
Cigarette Lighter
Rear Cigarette Lighter -U9-
- Removing and installing, refer to REAR CIGARETTE LIGHTER ILLUMINATION BULB .
Rear Cigarette Lighter Illumination Bulb -L32-
- For the Rear cigarette lighter -U9-.
- Removing and installing, refer to REAR CIGARETTE LIGHTER ILLUMINATION BULB .
Socket Illumination -L42-
- For the 12 V socket 4 -U20-.
- Removing and installing, refer to SOCKET ILLUMINATION BULB, 12 V SOCKET 4 .
Mount
- For the cigarette lighter and socket.
- Equipment level
Divider
- For the center console.
- Equipment level
Socket Illumination -L42-
- For the 12 V socket 2 -U18-
- Removing and installing, refer to SOCKET ILLUMINATION BULB, 12 V SOCKET 2 .
12 V Socket 2 -U18-
- Removing and installing, refer to SOCKET ILLUMINATION BULB, 12 V SOCKET 2 .
