ABS Control Module Connector End View (J104, T38)

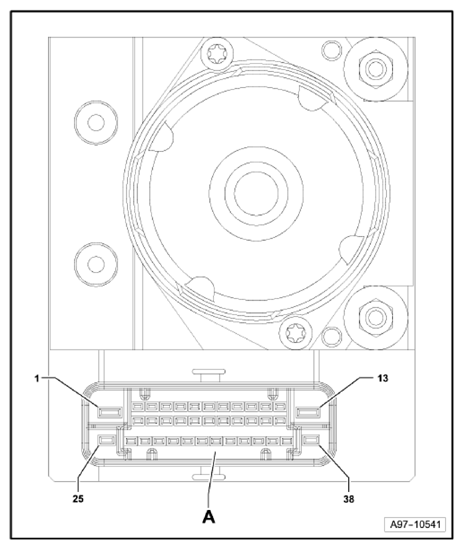

Fig 1: ABS Control Module Connector End View (J104, T38)
Courtesy of AUDI OF AMERICA, LLC
A
ABS Control Module -J104-
A
38-Pin Connector -T38-, black
