Instrument Panel With Windshield Projection Head Up Display Control Module Overview
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S6, 2015 Audi A6 Quattro, 2015 Audi A6, 2014 Audi S6, and 2014 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

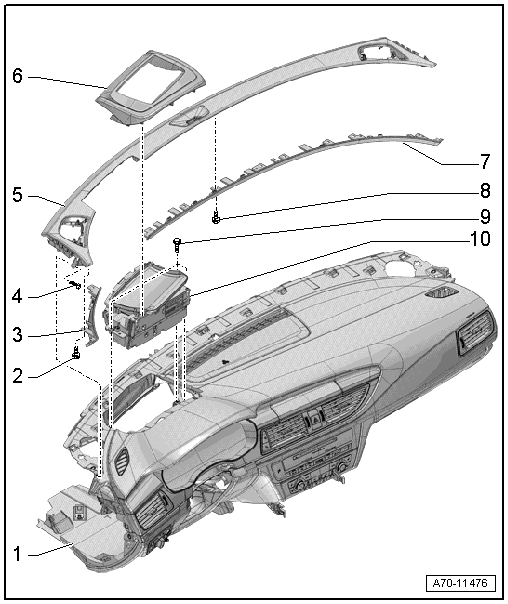

Fig 1: Identifying Instrument Panel With Windshield Projection Head Up Display Control Module Overview
- Instrument PanelWARNING:
- Follow all safety precautions when working on pyrotechnic components. Refer to RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .
- Follow the allocation of the airbag to the instrument panel.
- Removing and installing, refer to INSTRUMENT PANEL
- Bolt
- Tightening specifications, refer to INSTRUMENT PANEL ASSEMBLY OVERVIEW in step 4
- Trim Strip
- For the instrument panel cover
- Removing and installing, refer to INSTRUMENT PANEL COVER TRIM MOLDING
- Bolt
- Tightening specifications, refer to INSTRUMENT PANEL ASSEMBLY OVERVIEW in step 17
- Upper Instrument Panel Cover
- Removing and installing, refer to INSTRUMENT PANEL COVER, UPPER
- Cover
- For Windshield Projection Head Up Display Control Module -J898-
- Removing and installing, refer to WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE -J898-
- Press on until it engages audibly
- Trim Strip
- For the instrument panel cover
- Removing and installing, refer to INSTRUMENT PANEL COVER TRIM MOLDING
- Bolt
- Tightening specifications, refer to INSTRUMENT PANEL ASSEMBLY OVERVIEW in step 4
- Bolt
- Tightening torque, refer to WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE -J898- .
- Windshield Projection Head Up Display Control Module -J898-
- Removing and installing, refer to WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE -J898-
