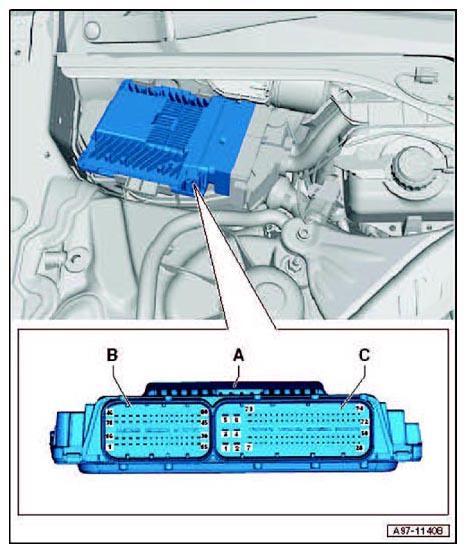

Engine Control Module Right-Hand Drive Connector End View (J623, T60, T94)
Courtesy of AUDI OF AMERICA, LLC
| A |
Engine Control Module (ECM) -J623- |
| B |
60-Pin Connector -T60-, black |
| C |
94-Pin Connector -T94-, black |
