Accelerator Pedal Module, Version 2

Special tools and workshop equipment required

Removing

-- Remove cover for steering column -arrows-.

Fig 1: Identifying Steering Column Cover

Courtesy of AUDI OF AMERICA, LLC

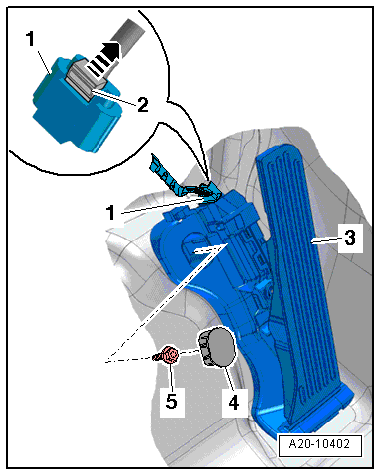

-- Disconnect the connector -1- on the accelerator pedal module -3- by pulling the release -2- all the way up -arrow-.

Fig 2: Identifying Accelerator Pedal Module, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Pry off the cap -4- using a screwdriver.

-- Remove the bolt -5-.

-- Push the T10238 into the intended openings -arrow- as far as the stop, as shown, and remove the accelerator pedal module.

Fig 3: Identifying Release Tool T10238

Courtesy of AUDI OF AMERICA, LLC

Installing

Install in reverse order, paying attention to the following:

-- Connect the connector -2- on the accelerator pedal module -5-.

Fig 4: Connecting Wiring And Electrical Harness Connector To Accelerator Pedal Module

Courtesy of AUDI OF AMERICA, LLC

-- Push the accelerator pedal module onto the securing studs -6-.

-- Insert centering pin -7- into hole on the underbody.

-- Secure the accelerator pedal module with the bolt -3- and install the cap -4-.

NOTE:

Ignore -1-.

Vehicles with Dual Clutch Transmission:

-- Perform after the first kick-down adaptation in "Guided Functions" using the vehicle diagnostic tester.
