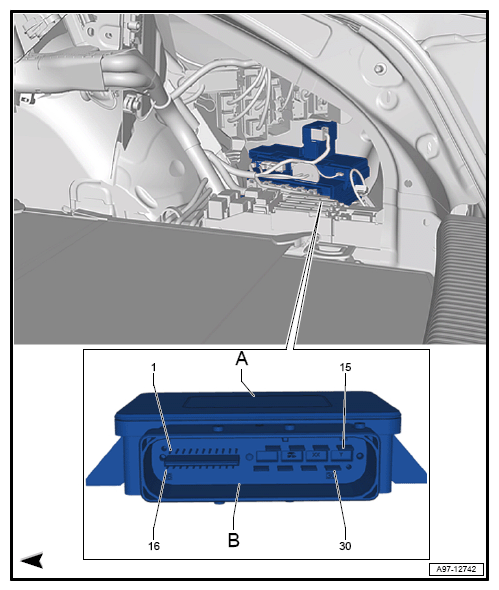

Electromechanical Parking Brake Control Module -J540-, Connector Views

  1. 30-Pin Connector -T30a-
  2. B - 30-Pin Connector -T30a-, black
G12768229Courtesy of AUDI OF AMERICA, LLC
