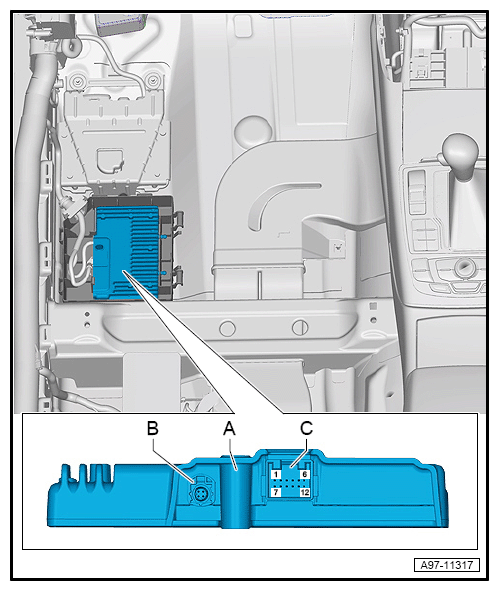

Night Vision System Control Module -J853-, Connector Views

5-Pin Connector -T5e-/12-Pin Connector -T12b-

  1. B - 5-Pin Connector -T5e-, black
  2. C - 12-Pin Connector -T12b-, black
G12768096Courtesy of AUDI OF AMERICA, LLC
