Special Tools

Fig 1: Identifying Special Tools

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Pry lever 80-200
• Engine and Gearbox Jack VAS6931
• Tensioning Strap T10038
• Motor Transport Loop T40016
• Crankshaft Socket T40058
• Gearbox Support T40173

Fig 2: Special Tools And Workshop Equipment

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Pry lever 80-200
• Engine and Gearbox Jack VAS6931
• Tensioning Strap T10038
• Counterhold - Vibration Damper T10355
• Gearbox Support T40173

Fig 3: Special Tools And Workshop Equipment

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Pry Lever 80-200
• Engine and Gearbox Jack VAS6931
• Engine Bung Set VAS6122
• Crankshaft Socket T40058
• Gearbox Support T40173

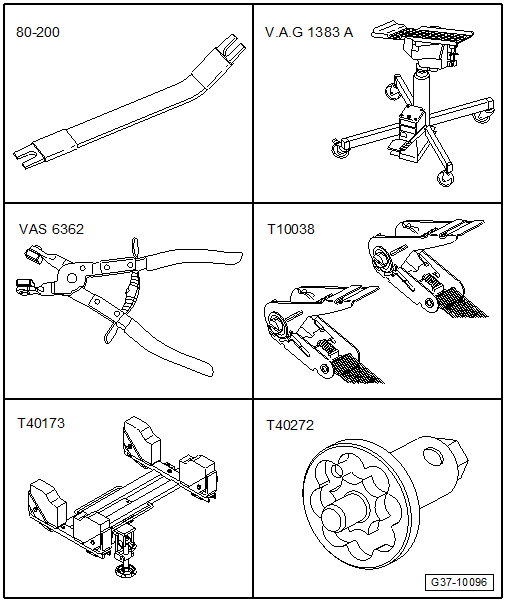

Fig 4: Special Tools And Workshop Equipment

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Pry Lever 80-200
• Engine and Gearbox Jack VAS6931
• Hose Clip Pliers VAS6362
• Tensioning Strap T10038
• Gearbox Support T40173
• Crankshaft Turning Tool T40272

Special tools and workshop equipment required

• Used Oil Collection and Extraction Unit SMN372500
  Fig 5: Identifying Used Oil Collection And Extraction Device VAS6622

  Courtesy of AUDI OF AMERICA, LLC
• Torque Wrench 1332 Insert - Ring Wrench - 16mm V.A.G. 1332/14
  Fig 6: Identifying Ring Wrench - 16mm VAG1332/14

  Courtesy of AUDI OF AMERICA, LLC
• Engine/Gearbox Jack - Gearbox Support T10337
  Fig 7: Identifying Gearbox Support T10337

  Courtesy of AUDI OF AMERICA, LLC
• Socket And Key T40031
  Fig 8: Identifying Socket And Key T40031

  Courtesy of AUDI OF AMERICA, LLC
• Clutch Module Transportation Lock T40170
  Fig 9: Identifying Transportation Lock T40170

  Courtesy of AUDI OF AMERICA, LLC
• Locking Button Removal Tool T40203
  Fig 10: Identifying Release Tool T40203

  Courtesy of AUDI OF AMERICA, LLC
• Engine and Gearbox Jack V.A.G. 1383 A
  Fig 11: Identifying Engine And Gearbox Jack V.A.G. 1383 A

  Courtesy of AUDI OF AMERICA, LLC
• Engine And Transmission Holder VAS 6095
  Fig 12: Engine And Transmission Holder VAS 6095

  Courtesy of AUDI OF AMERICA, LLC
• Shop Crane VAS 6100
  Fig 13: Identifying Shop Crane VAS 6100

  Courtesy of AUDI OF AMERICA, LLC
• Oil Filler VAS6262A
  Fig 14: Adapter For Oil Filling VAS 6262 A

  Courtesy of AUDI OF AMERICA, LLC
• Oil Filler - Adapter 6VAS6262/6
  Fig 15: Adapter For Oil Filling VAS 6262/6

  Courtesy of AUDI OF AMERICA, LLC
• Holding Plate VW 309
  Fig 16: Holding Plate VW 309

  Courtesy of AUDI OF AMERICA, LLC
• Pry Lever 80-200
  Fig 17: Identifying Pry Lever 80-200

  Courtesy of AUDI OF AMERICA, LLC
• Hook And Support Tool 3311 with Hook And Support Tool - Bolt 3311/1
  Fig 18: Identifying Hook And Support Tool 3311

  Courtesy of AUDI OF AMERICA, LLC
• Hose Clamps - Up To 25mm 3094
  Fig 19: Identifying 3094 Hose Clamps

  Courtesy of AUDI OF AMERICA, LLC
• Trim Removal Wedge 3409
  Fig 20: Identifying Trim Removal 3409 Wedge

  Courtesy of AUDI OF AMERICA, LLC
• Oil Filler - Jointed Hose VAS 6262/5
